215kW 418kWh Battery Energy Storage System

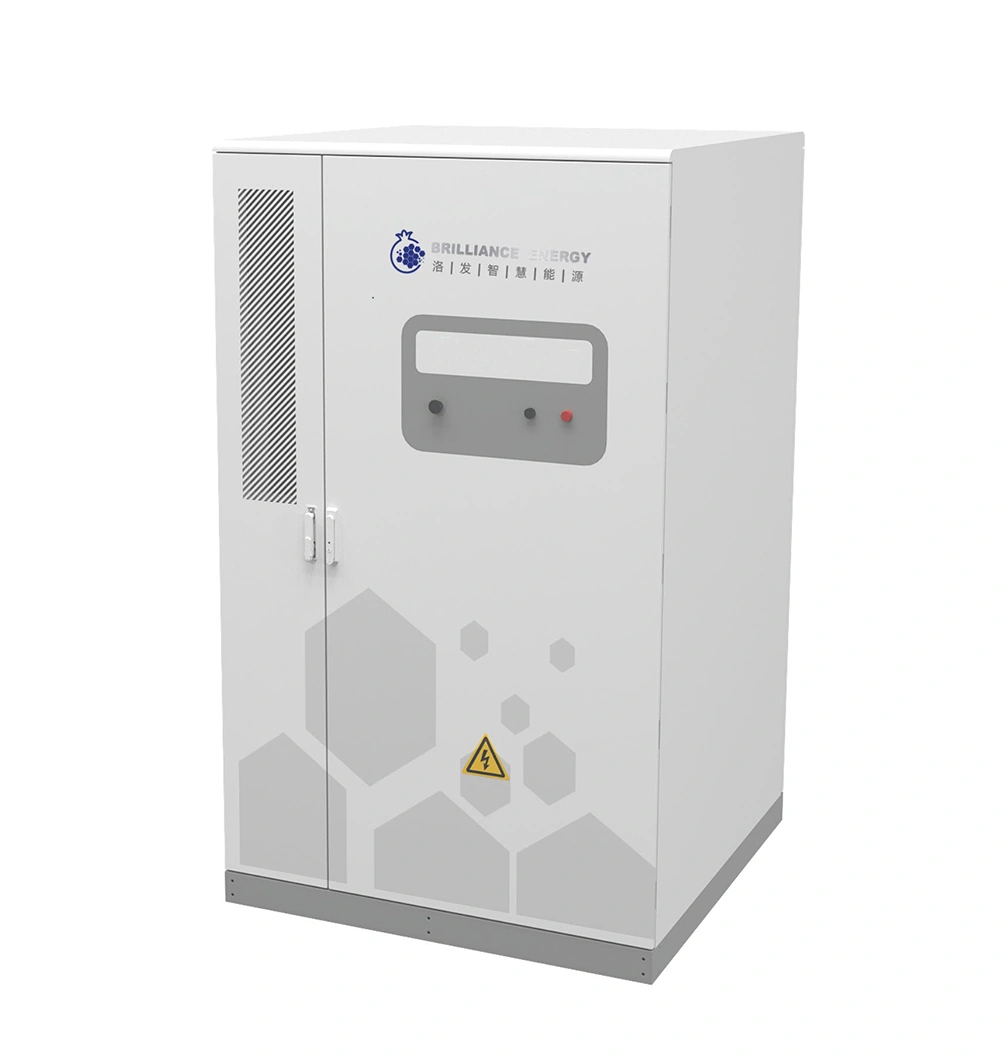

215kW 418kWh Battery Energy Storage System (AIO ESS Cabinet)

Video

DC liquid-cooled battery energy storage systems are designed for commercial and industrial facilities such as industrial parks and data centers. They use a DC-coupled design to link photovoltaic generation, battery storage, and the power grid, which allows energy to move efficiently between production, storage, and consumption. These AIO ESS cabinets are rated at 215kW power output and 418kWh energy capacity and support daily load shifting by storing excess solar energy and releasing it during peak demand periods to improve self-consumption and reduce electricity costs.

Request a Quote

Features

High Energy Density in a Compact, Cost-Efficient Design

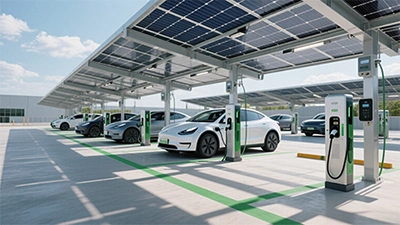

1. These AIO ESS cabinets have a 418kWh configuration that supports up to 2-hour full discharge, suitable for small and medium factories, commercial buildings, and EV charging stations.
2. Their DC-coupled architecture improves conversion efficiency to ≥94%, reducing energy losses and improving overall project returns.
Modular Design for Easy Installation
1. AIO ESS cabinets integrate BMS, thermal management, and fire protection into a single system, that allows fast installation and commissioning within 3 days.
2. Multiple cabinets can operate in parallel and support scalable expansion from 500kWh to 2MWh based on project requirements.
Safe Operation with Intelligent Control
1. Lithium iron phosphate batteries provide more than 6000 cycles, with a 10-year warranty design target.
2. These energy storage cabinets integrate thermal management linked with automatic aerosol fire suppression systems, certified with IEC 62619 international safety certification.
3. Thanks to their AI-based monitoring platform it’s possible to perform real-time remote supervision with fault detection accuracy above 99%.
Smart Energy Management
1. Integration with solar, wind, and diesel power sources enables coordinated microgrid operation, improving energy allocation based on demand conditions.
2. Four-quadrant control enables both charging and discharging within the same energy storage unit and ensures fast response to load changes.
Grid Compatibility with Multiple Revenue Models
1. ESS cabinets support demand response, frequency regulation, and backup capacity markets and create additional revenue opportunities.
2. Thanks to their compliance with GB/T 36276 and IEC 62619 standards, our AIO ESS systems achieve safe and reliable connection to global power grids.
Simplified Maintenance with Cloud-Based Control
1. Equipped with remote management through mobile app and PC platform to provide real-time access to operating data, energy statistics, and performance reports.
2. Predictive maintenance functions reduce operation and maintenance costs by more than 30%.

Specifications

Model	DC-215/418
Rated Power	215 kW
Energy Capacity	418 kWh
Battery Type	Lithium Iron Phosphate (LFP)
Cycle Life	≥ 6000 Cycles (80% EOL)
Max. DC Voltage	1,500 V
Round-Trip Efficiency (RTE)	≥ 94%
Battery Enclosure IP Rating	IP54 (Up to IP67 upon request)
Seismic Resistance	Eurocode 8 (EN 1998-1-1:2024)
Operating Temperature	-25 °C to 50 °C
Dimensions (W×D×H)	2400×1200×2200 mm (Customizable)
Weight	Approx. 7,500 kg
Certifications	IEC 62619, GB/T 36276

Components

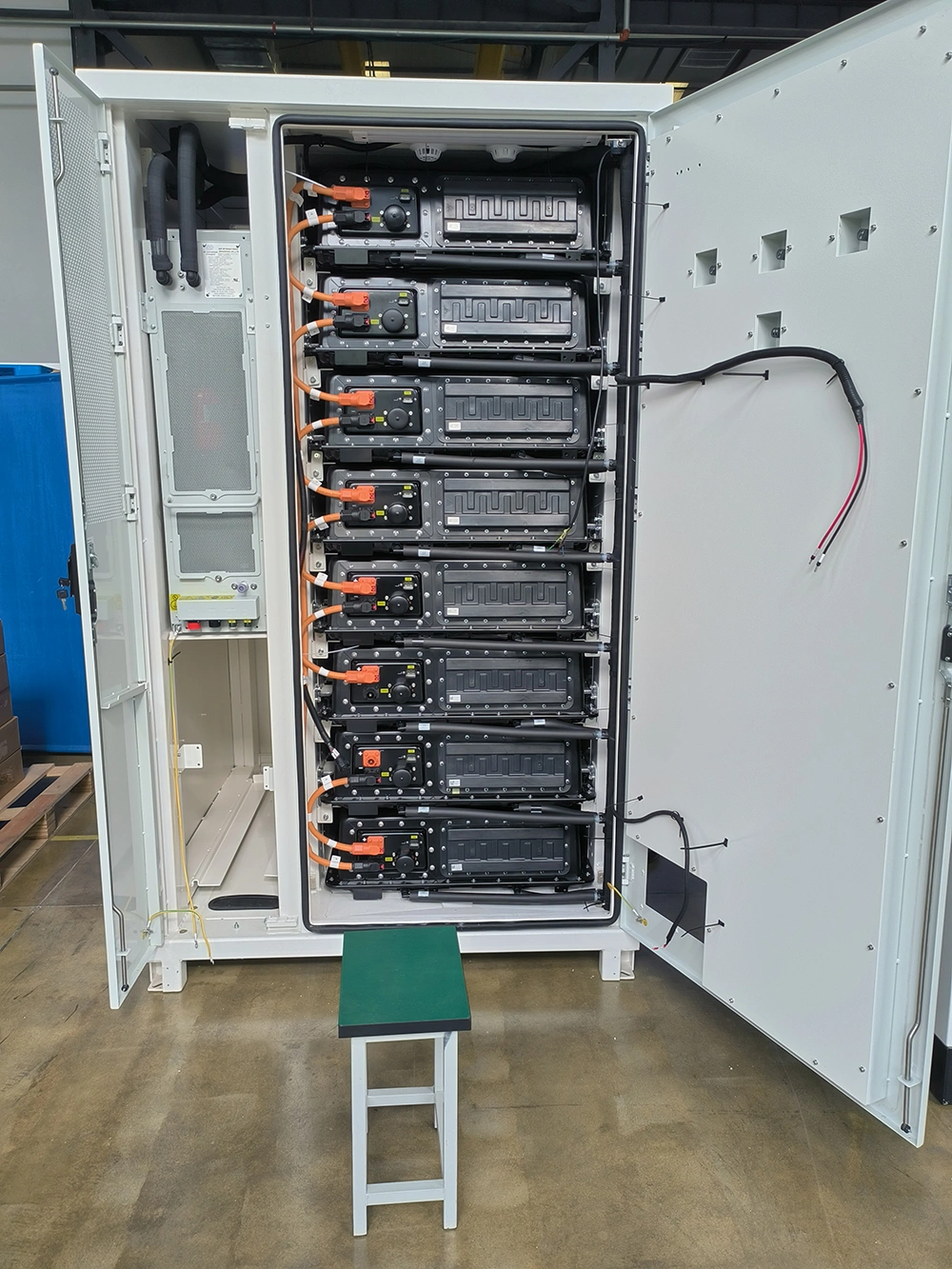

Battery Storage System:
LFP (lithium iron phosphate) battery cells are the core of our AIO energy storage systems, which provides a total capacity of 418kWh and supports up to 2 hours of full-load discharge. Their cell arrangement uses a 1P416S configuration, designed for up to 1500V DC operation, with overall efficiency reaching ≥94%.
Power Conversion System (PCS):
The integrated 215kW bi-directional inverter manages both grid-connected and off-grid operation. Four-quadrant control enables fast switching between charging and discharging, improving response to load variations.
Temperature Control System:
ESS cabinets use liquid cooling with Envicool units to maintain stable operating temperatures across the battery cells. Multi-level liquid cooling loop improves thermal control, supports easier maintenance access, and reduces the risk of leakage.
Safety Monitoring and Remote Control:
ESBMM, ESBCM, and ESMU provide control from cell level to full energy storage cabinet level, which keeps operation balanced and consistent across the entire battery system. The BMS and EMS inside the cabinet support Modbus RTU/TCP communication and cloud-based remote access for real-time monitoring and data management.

Details

High-Voltage Box
Liquid Cooling Unit
Smoke and Heat Detection Alarm Unit

Applications
