2500kW 5.016MWh Containerized Energy Storage System

High-Power Energy Storage for Large-Scale Applications

2500kW/5.016MWh liquid-cooled containerized energy storage systems are suitable for large industrial parks, data centers, and other sites with high and continuous power demand. Each 20-foot ESS container provides 5.016MWh of battery capacity and 2500kW of rated power, with up to two hours of full-power discharge. Their high energy density allows large amounts of electricity to be stored within a compact footprint for load shifting, peak shaving, renewable energy integration, and grid support.

Request a Quote

Features

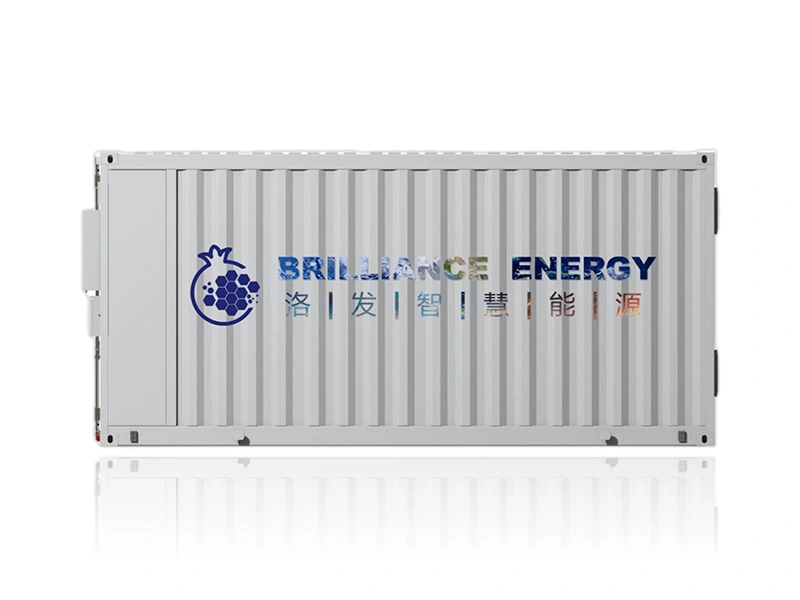

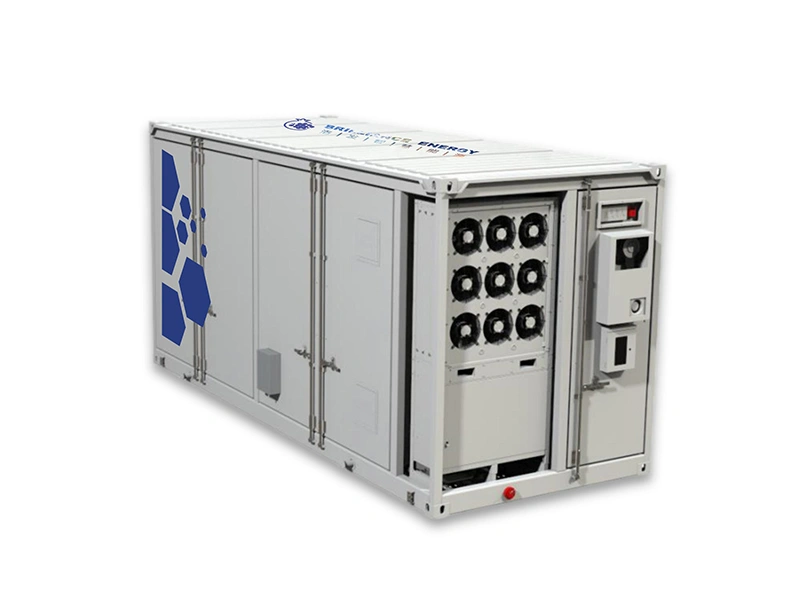

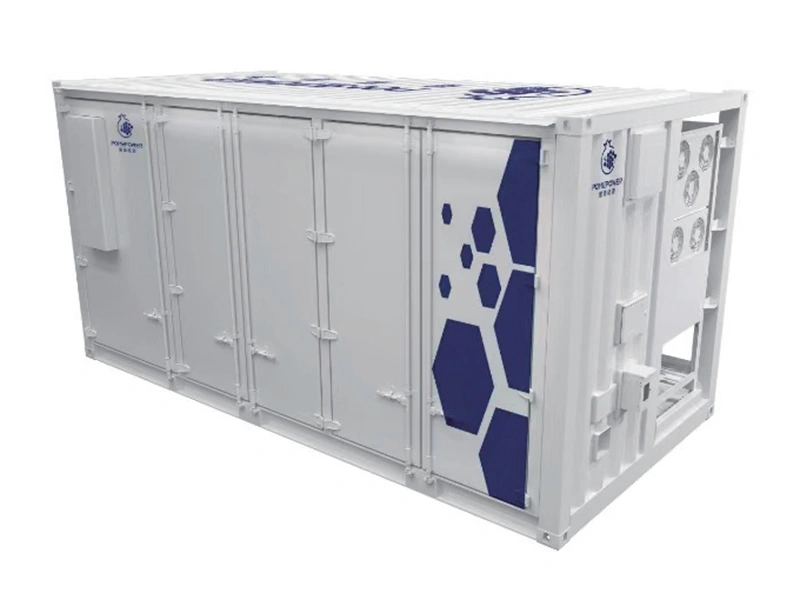

Standardized Container Design
1. The 20-foot ESS containers integrate EMS, BMS, liquid cooling, and fire protection in one enclosure.
2. Most assembly is completed before delivery, which allows on-site commissioning to be completed in as little as seven days.
Flexible Capacity Expansion
1. Multiple ESS containers can operate in parallel to meet larger project requirements.
2. The storage capacity can be expanded beyond 10MWh by adding more ESS container units.
Long Battery Service Life
1. LFP (lifepo ₄) battery cells are rated for at least 8000 cycles while retaining 80% of their original capacity.
2. The battery systems are supplied with a 10-year warranty.
Multi-Level Fire Protection
Thermal management linked with automatic aerosol fire suppression system, certified with IEC 62619 international safety certification.
Efficient Energy Management
1. Charge and discharge efficiency reaches at least 95%, with four-quadrant operation for smooth power control.

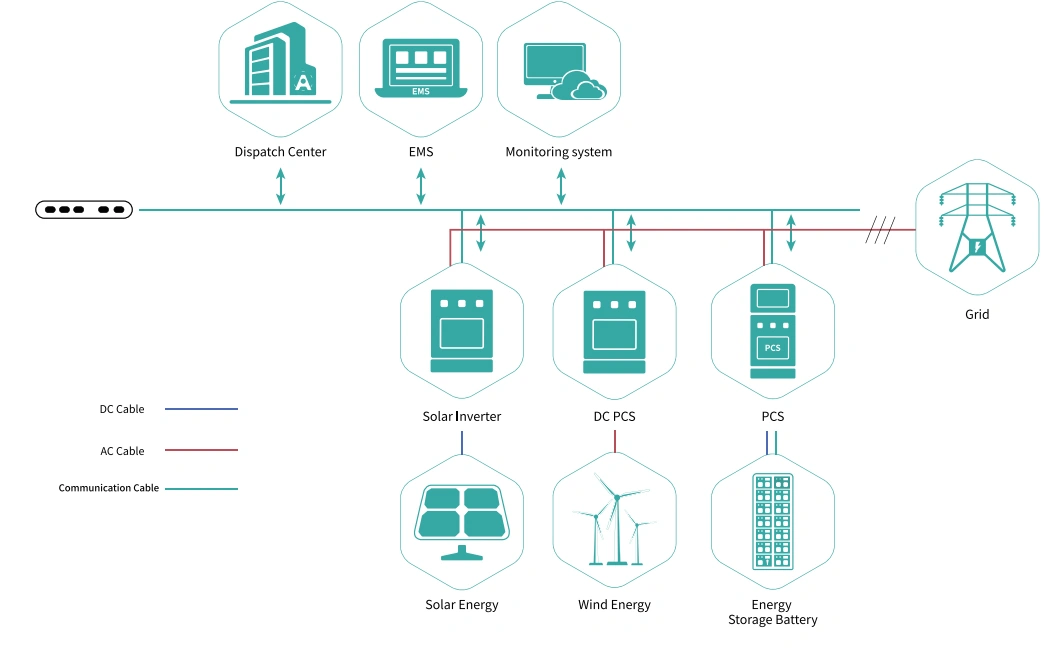

2. Intelligent dispatch coordinates battery storage with solar, wind, and diesel generation.
Grid Services and Revenue Opportunities
1. The ESS containers can support primary frequency control (PFC), demand response, and reserve capacity services.
2. Containerized ESS meet IEC 62619 and GB/T 36276 requirements for battery safety and grid-connected energy storage.
Remote Monitoring and Predictive Maintenance
1. Predictive maintenance functions track battery health and provide fault warnings with accuracy above 99%.
2. Cloud-based access allows operators to check system status and operating data from mobile and PC platforms.

Specifications

Model	XCLCC/5013
Energy Capacity	5.016 MWh
Battery Type	Lithium Iron Phosphate (LFP)
Nominal Cell Capacity	314 Ah
Cycle Life	≥ 8,000 cycles (90% DOD, 25°C, 70% EOL)
Nominal DC Voltage	1331.2 V
DC Voltage Range	1164.8 V–1497.6 V
Max. DC Current	1,884 A
Charge/Discharge C-Rate	0.5C
Charge/Discharge Mode	Constant Power (CP)
Round-Trip Efficiency (RTE)	≥ 95%
Thermal Management	Liquid Cooling
Fire Suppression System	Aerosol + HVAC Interlock (Water & CO2 System Optional)
Communication Interfaces	PCS-CAN / Modbus / Ethernet
Communication Protocols	PCS-CAN2.0 / Modbus RTU / IEC61850
Operating Temperature	-30°C to 55°C
Operating Humidity	< 50% RH (Non-condensing)
Max. Operating Altitude	≤ 4000 m
Acoustic Noise	≤ 75 dB(A) @ 1 m
Weight	Approx. 45,000 kg
Dimensions (W × D × H)	2,550 × 6,300 × 2,896 mm
Ingress Protection (IP) Rating	IP55
Corrosion Resistance	C4 (C5 Optional)
Certifications and Codes	IEC 62619

Components

Battery System:
The ESS containers use 5.016MWh LFP battery systems designed for high-capacity energy storage. They operate at a nominal DC voltage of 1331.2V, within a range of 1164.8–1497.6V, and support a maximum DC current of 1440A at a 0.5C charge and discharge rate. Under specified conditions, the batteries provide at least 8000 cycles at 90% depth of discharge, with 70% capacity remaining.
Power Conversion System (PCS):
The 2.5MW bidirectional PCS controls charging and discharging with efficiency of at least 95%. Its four-quadrant capability provides flexible power control and allows the battery systems to work with solar PV, wind power, and diesel generators.

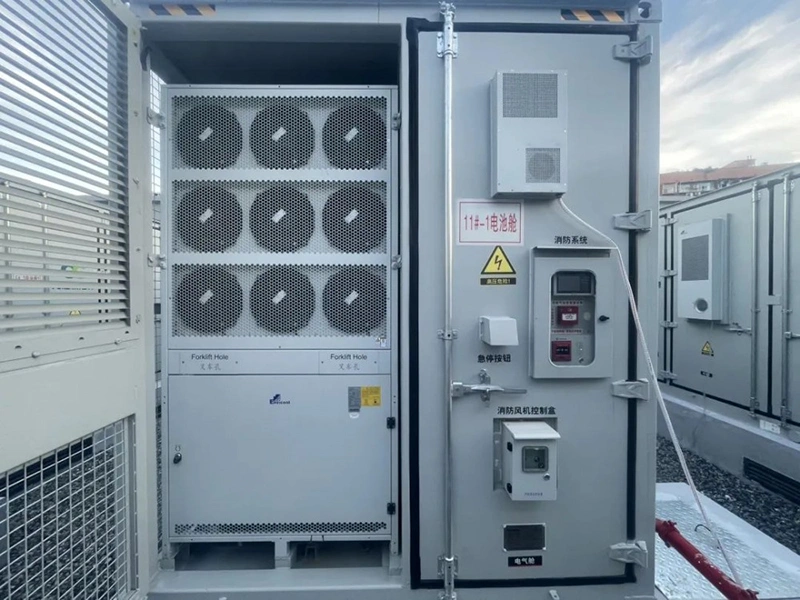

Thermal Management System:
Water cooling maintains an even temperature across the battery cells, with differences kept within 3°C. Intelligent control also cuts auxiliary energy use by 30% and keeps the ESS containers operating reliably from -30°C to 55°C.
Intelligent Management System:
AI-based predictive maintenance continuously checks battery health and provides fault warnings with accuracy above 99%. Operators can review operating data from mobile or PC platforms through the cloud management system. The ESS containers also meet IEC 62619 and GB/T 36276 requirements for battery safety and grid-connected energy storage.

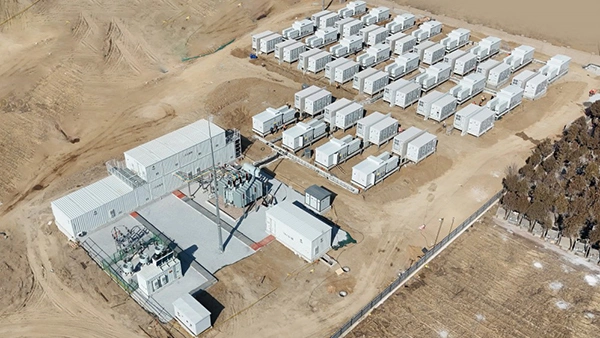

Applications

Industrial Energy Cost Control
Ideal for steel, chemical, and other high-energy industries that need to reduce demand charges and avoid peak-rate costs

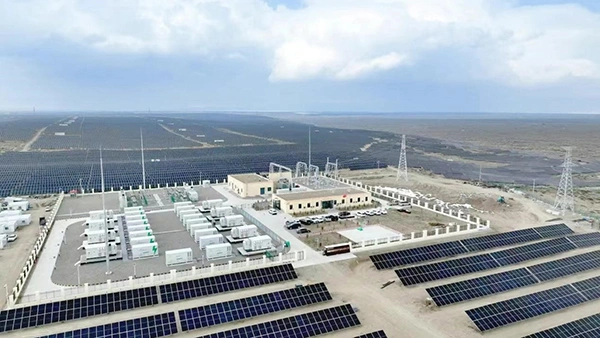

Renewable Energy Support
Used with solar and wind farms to smooth power output, improve grid stability, and reduce energy curtailment
Commercial Park Microgrids
Used as the main storage unit in commercial park microgrids to support grid-connected and off-grid operation during power interruptions
